Nestled in the heart of Kinshasa, Sadiki Metals stands as a trusted partner for industry, bringing precision and local expertise to the forefront. We specialize in the manufacturing and supply of high-integrity Stainless Steel 316 forgings, crafted to meet the rigorous demands of both local and international projects. Our commitment is to deliver components that not only meet exact specifications but also contribute to the growth and resilience of the regional industrial landscape with reliable, durable solutions you can count on.
The strength of Stainless Steel 316 lies in its sophisticated composition, which includes chromium, nickel, and a crucial addition of molybdenum. This alloying gives the material its exceptional resistance to corrosion, particularly against chlorides and acids. In terms of mechanical performance, these forgings offer an excellent balance of high tensile strength and good ductility, allowing them to perform reliably under significant pressure and stress, even in elevated temperature environments.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

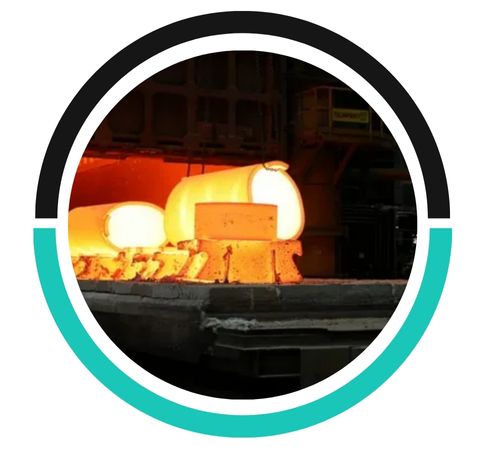

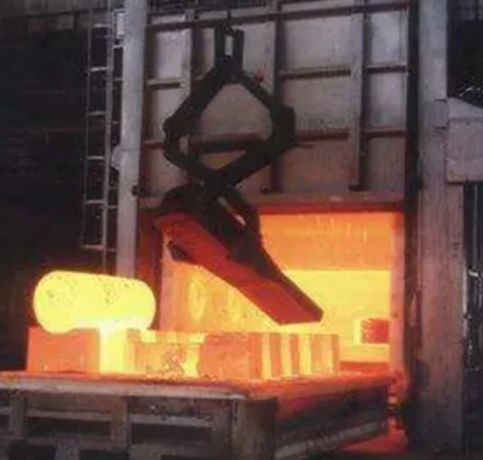

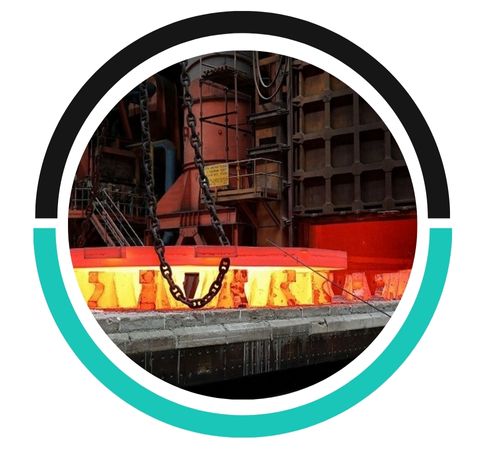

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Yes, Stainless Steel 316 forgings can be shaped into custom forms using precision forging techniques, allowing for a wide range of applications in various industries, including marine and chemical sectors.
The ideal temperature range for forging Stainless Steel 316 is between 2100°F to 2300°F (1149°C to 1260°C), ensuring optimal ductility and minimizing the risk of cracking.
The forging process for Stainless Steel 316 typically takes from a few minutes to several hours, depending on the part's complexity, size, and required finishing.
The versatility of Stainless Steel 316 forgings makes them indispensable across a wide spectrum of critical applications. You will find them forming the backbone of chemical processing plants, where they handle corrosive substances, and in marine equipment constantly battling saltwater. They are essential for constructing robust valves and pumps for the oil and gas sector, and their hygienic properties make them a preferred choice for food processing machinery and pharmaceutical manufacturing, ensuring purity and safety in sensitive environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
