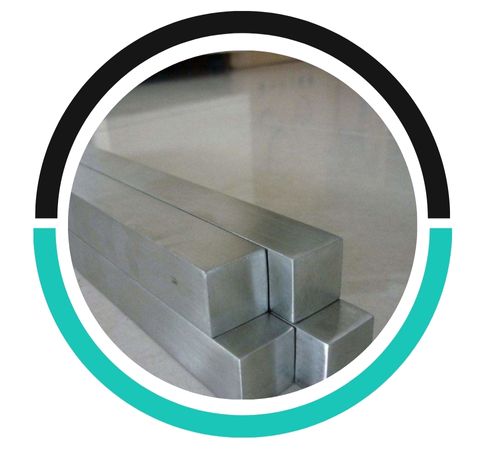

Sadiki Metals, based in Kinshasa, Congo, stands out as a top manufacturer and supplier of Inconel Square Bars. These bars are celebrated for their remarkable strength, resistance to corrosion, and ability to perform in extreme conditions. Crafted from high-quality Inconel alloys, they utilize cutting-edge production methods to guarantee precision, durability, and reliability. Sadiki Metals follows international standards to cater to industries that operate under intense pressure and heat. The Inconel Square Bars find extensive applications in aerospace, chemical, marine, and power generation sectors, providing excellent resistance to oxidation, acids, and high-temperature corrosion for long-lasting service.
These bars mainly consist of nickel, chromium, and iron, with small amounts of molybdenum, niobium, and titanium added based on the specific grade. This distinctive blend gives them outstanding tensile and yield strength, along with remarkable resistance to oxidation, scaling, and corrosion in harsh heat and chemical environments. Mechanically, Inconel holds its ground under thermal stress, shows high fatigue resistance, and boasts excellent weldability and formability, making it a go-to material for high-performance and heavy-duty industrial uses.
| Standard | ASME, ASTM, GB, API, DIN, AISI, SUS, EN, UNS |
|---|---|
| Inconel Square Size | 33 x 30mm to 295 x 1066mm |
| Square Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Inconel Square Bar Finish | centreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, hot rolled annealed, Polish, Bright, Centreless Ground & Black, Grinding |
| Inconel Square Bar Tolerance | H9, H8, H11, H10, H13K9, H12, K11, K10, K12 or as per clients’ requirements |
| Alloy Square bar Condition | Hardened & tempered, annealed |
| Alloy Square Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Inconel Square Bars Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Alloy Cold Drawn and Polish Square Bars | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Alloy Cold Drawn and Ground Square Bars | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished Square Bars | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Inconel Peeled and Square Bars | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Al | Ti | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal | 20 | – | 8 | 3.15 | – | – | – | – | – | – | – | – |
| Max | – | 23 | 5 | 10 | 4.15 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 0.40 | 0.40 | 1.0 |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRB |
| Min | Min | Min | Min | Min |
| 414 | 827 | 30 | 40 | 145 |
Inconel Square Bar is widely used in industries such as aerospace, chemical processing, power generation, and marine. It is ideal for components exposed to high temperatures and corrosive environments, including turbines, heat exchangers, and exhaust systems.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sadikimetals.com
Inconel Square Bars are widely utilized across aerospace, marine, oil & gas, chemical processing, and power generation industries due to their exceptional strength and heat and corrosion resistance. They are perfect for crafting turbine components, heat exchangers, reactor vessels, valves, and fasteners. In marine and offshore applications, they excel in saltwater and acidic environments. Moreover, Inconel Square Bars are essential in nuclear plants, petrochemical refineries, and exhaust systems, where reliability and durability under extreme temperatures and pressures are crucial for ensuring efficient and long-lasting performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
