Tantalum Bars and Rods are prized for their remarkable resistance to corrosion, impressive melting point, and outstanding durability, making them perfect for tough industrial, chemical, aerospace, and medical uses. Crafted with precision, these bars and rods deliver exceptional mechanical stability and long-lasting performance, even in extreme temperatures and harsh chemical environments. Their ability to withstand strong acids, oxidizing agents, and high heat ensures they operate reliably in critical situations. Tantalum Bars and Rods are commonly found in applications where chemical inertness, structural integrity, and high performance are crucial, providing consistent results across various industries.
Made primarily from high-purity tantalum, Tantalum Bars and Rods often include trace alloying elements to boost strength, hardness, and thermal stability. They offer excellent ductility, toughness, and resistance to high temperatures while still maintaining their impressive chemical resistance. These bars and rods can be machined, fabricated, and welded with precision, all without sacrificing their corrosion-resistant qualities. The blend of mechanical strength, thermal stability, and chemical inertness makes Tantalum Bars and Rods adaptable for uses that demand both structural reliability and resilience in aggressive environments.
| Specification | ASTM B365, ASME SB365 |

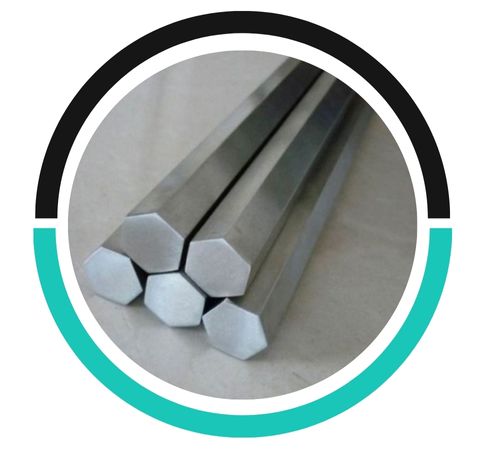

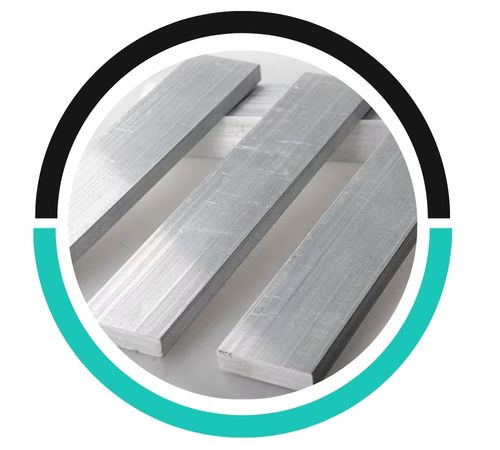

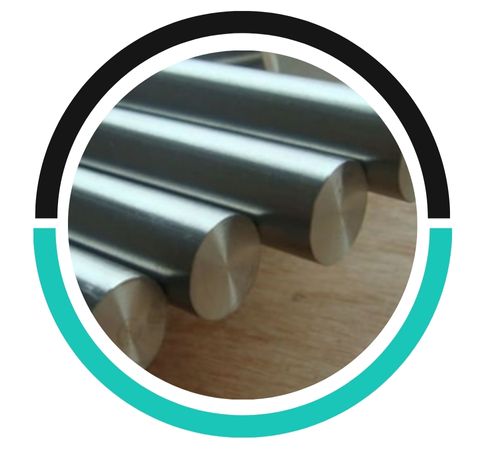

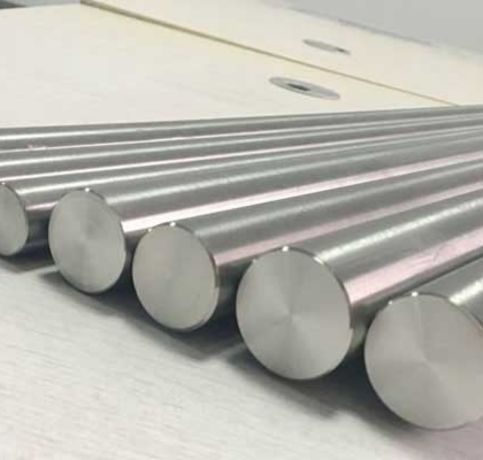

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Type | Ta | W | Nb |
|---|---|---|---|
| R05200 / R05400 | Unalloyed (Pure) | – | – |
| R05252 | 97.5 % | 2.5 % | – |
| R05255 | 90 % | 10 % | – |
| R05240 | 60 % | – | 40 % |
| Type | Ultimate Tensile Strength min.psi (Mpa) | Yeild Strength min.psi (Mpa) | Elongation, % (min) |
|---|---|---|---|
| R05200 / R05400 | 25,000(172) | 15,000(103) | 25 |
| R05252 | 40,000(276) | 20,000(138) | 20 |
| R05255 | 70,000(482) | 55,000(379) | 20 |
| R05240 | 35,000(241) | 15,000(103) | 25 |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Yes, tantalum bars and rods are highly corrosion-resistant, especially to acids, alkalis, and high temperatures, making them ideal for harsh environments like chemical processing and aerospace applications.
Annealed tantalum bars and rods are heat-treated for improved ductility and softness, while non-annealed ones are harder and more brittle, retaining their as-cast properties. Annealed versions are easier to shape.
In the realms of chemical processing, electronics, aerospace, and medical fields, Tantalum Bars and Rods are extensively utilized. They are perfect for components like heat exchangers, piping systems, reactors, electrodes, and high-temperature industrial equipment that come into contact with harsh chemicals. In chemical plants, they guarantee long-lasting durability in equipment that handles strong acids and oxidizing substances. Moreover, Tantalum Bars and Rods find their place in high-performance machinery, electronic devices, and specialized industrial components, delivering exceptional corrosion resistance and mechanical stability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
