Nestled in the heart of Kinshasa, Congo, Sadiki Metals stands as a dedicated manufacturer and supplier, deeply rooted in the region’s rich resources. We take pride in producing high-quality Permalloy bar and rod, materials essential for advanced technological applications. Our commitment goes beyond mere supply; we aim to be a reliable partner for industries both locally and internationally, contributing to innovation with precision-engineered components crafted with care and expertise right here in Congo.
Our Permalloy bar and rod are distinguished by their unique composition, primarily a nickel-iron alloy with a nickel content typically around 80%. This specific blend is key to its exceptional soft magnetic properties, including high magnetic permeability and minimal core losses. Mechanically, it is a ductile and malleable material, allowing it to be easily machined and fabricated into the precise shapes required for sensitive components without compromising its crucial magnetic performance.
| Standards : | — |
| Thickness : | Range from .008″ to .0125″ |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form : | Bar |
| Tungsten Grades | HA 190 / HA 1925 / HA 195 / HE 390 / HE 3925 / HE 395 / HE 397 |
| C | P | S | Mn | Si | Ni | Cr | Co | Mo | Cu | Fe | |
| 1J46 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.15-0.30 | 45-46.5 | – | – | – | ≤0.2 | Balance |
| 1J50 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 49-50.5 | – | – | – | ≤0.2 | Balance |
| 1J79 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.30-0.50 | 78.5-81.5 | – | – | 3.8-4.1 | ≤0.2 | Balance |
| 1J85 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 79-81 | – | – | 4.8-5.2 | ≤0.2 | Balance |
| Grade | Resisitivity (μΩ•m) | Desinty (g/cm3) | CuriePoint℃ | HighSaturatedmagneto-strictioncoefficient λθ/10-6 | Brinellhardness HBS | σbTensile Strength MPa | σsYieldStrength MPa | Elongation (%)δ | ||||
| unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | |||||
| 1J46 | 0.45 | 8.2 | 400 | 25 | 170 | 130 | 735 | 735 | 3 | |||
| 1J50 | 0.45 | 8.2 | 500 | 25 | 170 | 130 | 785 | 450 | 685 | 150 | 3 | 37 |
| 1J79 | 0.55 | 8.6 | 450 | 2 | 210 | 120 | 1030 | 560 | 980 | 150 | 3 | 50 |
| 1J85 | 0.56 | 8.75 | 400 | 0.5 | – | – | – | – | – | – | – | – |
Permalloy bars are generally not highly susceptible to galvanic corrosion, as they have good resistance to corrosion. However, when in contact with dissimilar metals, galvanic corrosion may still occur under certain conditions.
Yes, Permalloy bars can be welded, but due to their high nickel content, specialized welding techniques, such as TIG or laser welding, and proper precautions are necessary to maintain magnetic properties.

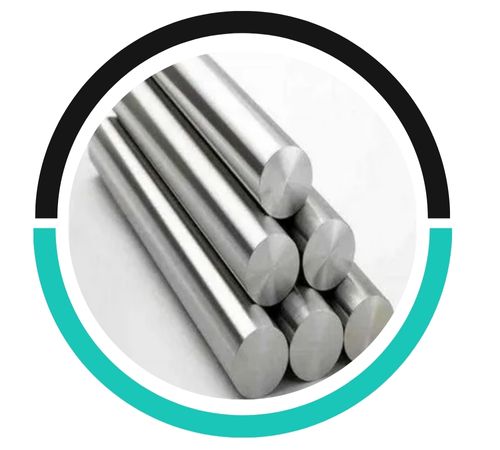

Permalloy rods are available in various sizes, typically ranging from 1/16" to 4" in diameter. Common finishes include bright, polished, or cold-drawn finishes, depending on the application requirements.
The uses for our Permalloy bar and rod are found in technologies where precise magnetic control is paramount. They are indispensable in the manufacturing of sensitive transformer cores, magnetic shielding, and high-performance inductors. You’ll also find them at the heart of various sensors and in critical aerospace and telecommunications equipment. Essentially, wherever there’s a need to efficiently guide, shield, or control magnetic fields with great accuracy, our Permalloy products provide the reliable foundation for innovation and operational excellence.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
