Sadiki Metals is a well-respected manufacturer and supplier located in Kinshasa, Congo, known for its top-notch Nimonic 115 Bars and Rods. The company is dedicated to providing high-performance nickel-chromium-cobalt alloys that boast remarkable strength, oxidation resistance, and durability even at high temperatures. Crafted with cutting-edge metallurgical techniques and precise processing, these bars and rods are tailored for the rigorous demands of aerospace and high-temperature industrial applications. Sadiki Metals caters to various sectors, including aviation, power generation, gas turbines, and petrochemical processing, offering Nimonic 115 Bars and Rods that adhere to global standards for quality, performance, and reliability.
Nimonic 115 Bars and Rods are made from a nickel-based superalloy that includes nickel (≥55%), chromium (14–16%), cobalt (14–15%), aluminum (4–5%), titanium (3–4%), along with trace amounts of molybdenum and carbon. This carefully balanced composition delivers exceptional high-temperature strength, oxidation resistance, and creep resistance. On the mechanical front, Nimonic 115 showcases outstanding tensile and yield strength, impressive thermal fatigue resistance, and stability up to 950°C, making it perfect for long-term use in extreme heat and stress environments.
| Grade | Nimonic 115 – UNS |
|---|---|
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS |

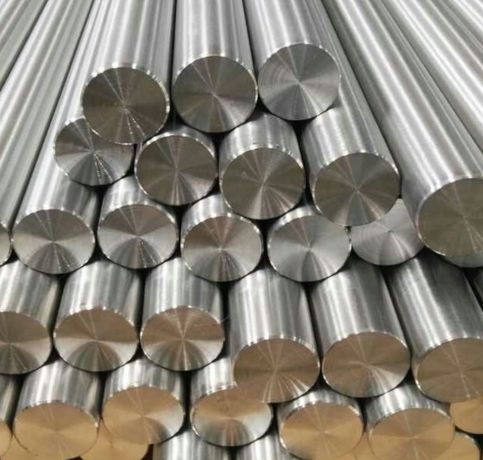

| Nimonic 115 Round bar size | Diameter: 3mm~800mm |
| Nimonic 115 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

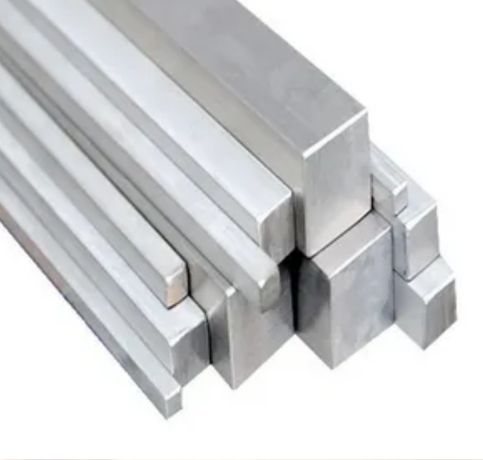

| Nimonic 115 Square bar size | 4mm*4mm~100mm*100mm |
| Nimonic 115 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Nimonic 115 Hex Bar size | 2mm~100mm |
| Nimonic 115 Billet Size | 1/2″ to 495mm Diameter |

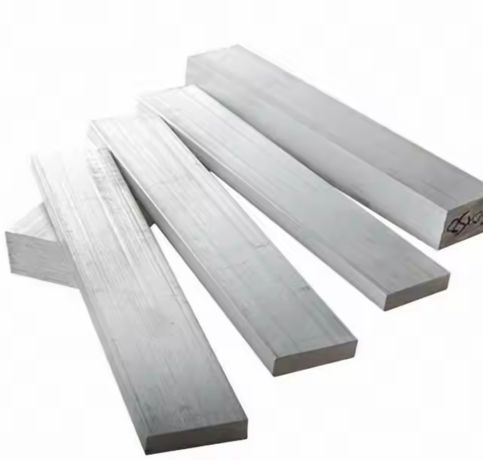

| Nimonic 115 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 115 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 115 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Element | Content (%) |
|---|---|
| Nickel, Ni | 54 |
| Chromium, Cr | 14.0-16.0 |
| Cobalt, Co | 13.0-15.5 |
| Aluminum, Al | 4.50-5.50 |
| Molybdenum, Mo | 3.0-5.0 |
| Titanium, Ti | 3.50-4.50 |
| Iron, Fe | 1.0 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Copper, Cu | 0.20 |
| Zirconium, Zr | 0.15 |
| Carbon, C | 0.12-0.20 |
| Sulfur, S | 0.015 |
| Boron, B | 0.010-0.025 |
| Tensile Strength | Min 185KSI | Min 1277MPA |
| Yield Strength | Min 141KSI | MIN 973MPA |
| Elongation | Min 38% |
| Alloy Name | Trade Name | UNS No. | British Specs | American Specs | German Specs | French Specs |
|---|---|---|---|---|---|---|
| Alloy 115 | Nimonic 115 | BS HR4 | WS 2.4636 | AFNOR NCK 15ATD |
Nimonic 115 rods are available in sizes ranging from 1/8" to 4" diameter. Finishes include cold drawn, polished, and rough turned, suitable for high-temperature applications.
Nimonic 115 rods typically come in standard sizes ranging from 1/8" to 6" in diameter, with lengths varying from 3' to 20' depending on the manufacturer and customer specifications.
Yes, Nimonic 115 rods can be supplied in both polished and matte finishes, depending on the specific requirements and customer preferences. These finishes are available from various suppliers.
These Nimonic 115 Bars and Rods find extensive application in industries that demand materials with superior heat and oxidation resistance. They are particularly suited for turbine blades, jet engine components, exhaust systems, fasteners, and heat treatment fixtures. Additionally, these bars and rods are utilized in power plants, aerospace engines, and chemical processing units that operate under severe temperature and stress conditions. Thanks to their excellent mechanical properties, oxidation stability, and structural reliability, Nimonic 115 Bars and Rods are the go-to choice for high-performance and critical engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
