Sadiki Metals, located in Kinshasa, Congo, stands out as a top manufacturer and supplier of high-quality Aluminium 5754 Bars and Rods. Renowned for its precision in manufacturing and rigorous quality control, Sadiki Metals delivers products that align with international standards for strength, durability, and resistance to corrosion. With a strategic position to serve the Central African market, the company supports various industries, including marine, automotive, construction, and industrial engineering. Committed to excellence, timely delivery, and dedicated technical support, Sadiki Metals guarantees a reliable supply of Aluminium 5754 bars and rods, empowering clients to achieve outstanding performance in demanding applications.
Aluminium 5754 is an Al-Mg wrought alloy, made up of about 2.6–3.6% magnesium, ≤0.5% manganese, ≤0.4% silicon, ≤0.4% iron, ≤0.3% chromium, with the rest being aluminium. This alloy isn’t heat-treatable, but its strength is boosted through cold working. The mechanical properties differ by temper: tensile strength ranges from 190–290 MPa, yield strength from 130–245 MPa, elongation is around 10–20%, and Brinell hardness falls between 60–85 HB. It offers excellent corrosion resistance, particularly in marine and atmospheric conditions, along with great weldability and moderate strength.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

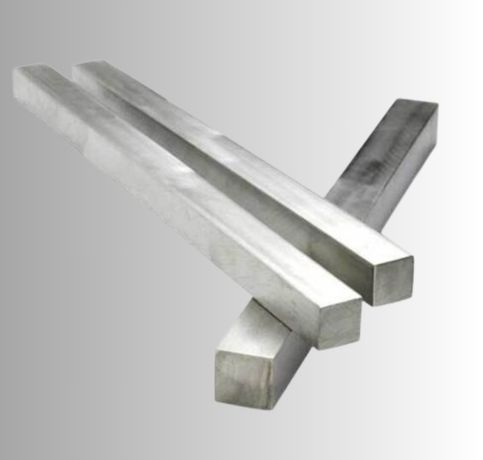

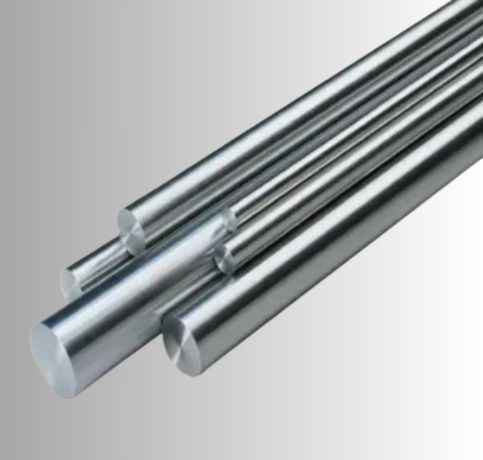

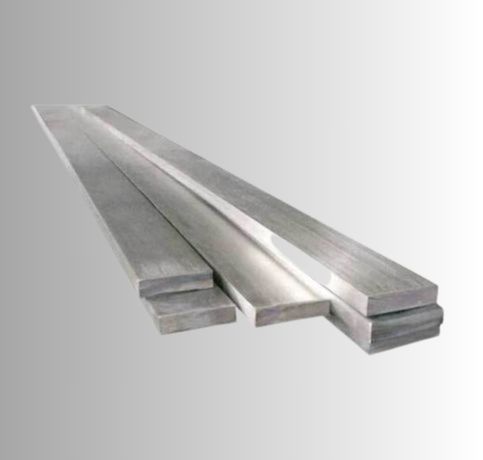

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other (Each) | Others (Total) | Al |
| 2.60 – 3.60 | 0.0 – 0.50 | 0.0 – 0.40 | 0.0 – 0.40 | 0.0 – 0.30 | 0.0 – 0.20 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.05 | 0.0 – 0.15 | Balance |
| Proof Stress | Tensile Strength | Elongation at 50 mm | Hardness Brinell |
| 80 Min MPa | 190 – 260MPa | 12 Min % | 52 HB |
| UNS | EN | DIN | ISO | USA | WNR |
| A95754 | EN AW-5754 | AlMg3 | AlMg3 | AA5754 | 3.3535 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5754 bars and rods are suitable for structural applications due to their excellent strength, corrosion resistance, and formability, making them ideal for use in marine, automotive, and architectural structures.
Yes, Aluminium 5754 bars can be welded using various techniques, such as MIG and TIG welding. However, proper welding procedures and equipment are essential to maintain its strength and integrity.
Aluminium 5754 bars are typically sized based on diameter and length. The diameter can range from a few millimeters to several inches, while the length is often available in standard lengths, typically up to 6 meters. Custom sizes can also be ordered based on specific requirements. The bars are available in various shapes, including round, square, and hexagonal, to suit different applications.
Aluminium 5754 Bars and Rods find extensive use in industries that demand corrosion resistance, weldability, and moderate strength. In the marine industry, they are perfect for shipbuilding, offshore platforms, and marine equipment due to their outstanding resistance to seawater. They’re also utilized in automotive and transportation components, pressure vessels, storage tanks, and welded assemblies where lightweight yet durable materials are essential. Furthermore, these bars and rods are ideal for structural frameworks, forming operations, and general industrial applications. Cold-worked 5754 bars ensure reliable performance even in high-stress and outdoor environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
